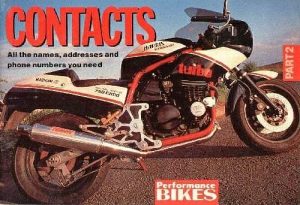

The Harris Magnum 3 is a motorcycle that was released in 1984, based on the Kawasaki GPZ 750 Turbo. It has a four-stroke, turbocharged, transverse four-cylinder engine with two valves per cylinder and a capacity of 738cc, as well as a cooling system that is both air and oil-cooled. The bike has a compression ratio of 7.8:1 and uses Mikuni fuel injection and digital ignition for its induction and starting processes, respectively. The maximum power output of the Harris Magnum 3 is 112 horsepower or 82.4 kilowatts at 9000 revolutions per minute, while its torque output is 99.1 Newton meters or 73.1 foot-pounds at 6500 RPM. The bike has a five-speed transmission and a chain for final drive, along with front and rear disc brakes for stopping power.
Technical specifications:
Make Model: Harris Magnum 3 (Kawasaki GPZ 750 Turbo)
| Year | 1984 |
|---|---|
| Engine | Four stroke, turbocharged, four-stroke, transverse four cylinder, DOHC, 2 valves per cylinder |
| Capacity | 738 |
| Bore x Stroke | 66 x 54 mm |
| Cooling System | Air/oil cooled |
| Compression Ratio | 7.8:1 |
| Induction | Mikuni fuel injection |
| Ignition | Digital |
| Starting | Electric |
| Max Power | 112 hp / 82.4 kW @ 9000 rpm |
| Max Torque | 99.1Nm 73.1ft-lb @ 6500 rpm |
| Transmission | 5 Speed |
| Final Drive | Chain |
| Front Brakes | 2x Discs |
| Rear Brakes | Singe disc |
