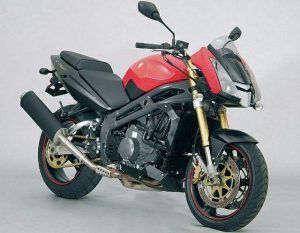

MZ 1000SF Special (2005)

The MZ 1000SF Special is a motorcycle model that was released in 2005. Its engine is a four-stroke, parallel twin-cylinder with a capacity of 996 cc. The cooling system is liquid-cooled, with a compression ratio of 12.5:1. The bike uses electronic fuel injection for induction and electric CDI for ignition, with a max power of 117 hp and max torque of 98 Nm. It has a wet multi-plate hydraulic clutch and a six-speed transmission with a final chain drive. The frame is a dual tube bridge frame, and the front suspension is a Marzocchi upside-down fork with a front wheel travel of 120 mm. The rear suspension is a Sachs monoshock with a rear wheel travel of 120 mm. The bike uses 2x 320mm discs with 4 piston calipers for the front brakes and a single 240mm disc with 2 piston caliper for the rear brakes. The front tire is 120/70-17, and the rear tire is 180/55-17. It has a rake of 24.5 degrees, a trail of 98 mm, a wheelbase of 1445 mm, and a seat height of 820 mm. The dry weight of the bike is 210.0 kg, and it has a fuel capacity of 20 liters. The standing quarter-mile time of the bike is 10.9 seconds with a top speed of 146.8 mph.

Technical specifications:

Make Model: MZ 1000SF Special

Year: 2005

Engine: Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity: 996 cc / 60.9 cu-in
Bore x Stroke: 96 X 69 mm
Cooling System: Liquid cooled
Compression Ratio: 12.5:1
Exhaust: Euro 2 / 2 Catalytic converter
Induction: Electronic Fuel Injection
Ignition: Electric CDI
Starting: Electric
Max Power: 117 hp / 83.8 kW @ 8000 rpm
Max Torque: 98 Nm / 71 lb-ft @ 7000 rpm
Clutch: Wet multi-plate hydraulic
Transmission: 6 Speed
Final Drive: Chain
Frame: Dual tube bridge frame

Front Suspension: Marzocchi Upside-down fork
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Sachs Monoshock
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 240mm disc 2 piston caliper
Front Tyre: 120/70-17
Rear Tyre: 180/55-17
Rake: 24.5 degrees
Trail: 98 mm / 3.9 in
Wheelbase: 1445 mm / 56.9 in
Seat Height: 820 mm / 32.3 lbs
Dry Weight: 210.0 kg / 463.0 lbs
Fuel Capacity: 20 Litres / 5.2 US gal
Standing 1/4 Mile: 10.9 sec / 119.5 mph
Top Speed: 146.8 mph
