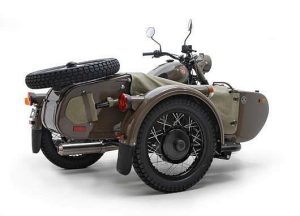

URAL M70 Anniversary (2011)

The Ural M70 Anniversary motorcycle was produced in 2011 with only 50 units made. It features a four-stroke twin flat boxer cylinder engine with a capacity of 749cc and a compression ratio of 8.6:1. The motorcycle is air-cooled and has twin KEIHIN L 22 AA carburettors with 32mm induction. The starting mechanism is both electric and kick. The Ural M70 Anniversary has a maximum power output of 30.6kW and a maximum torque of 56.9Nm at 4300 rpm. The transmission is four-speed with reverse and has a dry, double-disc clutch. The final drive is shaft driven, with a final drive ratio of 4.62:1. The front suspension is a leading link with Sachs hydraulic shock absorbers, and the rear suspension is Sachs hydraulic shock absorbers. The sidecar suspension features a single-sided swingarm with Sachs hydraulic spring shock absorber and is adjustable up to five positions. The Ural M70 Anniversary motorcycle has aluminium rims with spokes measuring 2.5 x 19 inches for both front and rear wheels. The fuel tank capacity is 18.9L, with a reserve of 3.8L, and an average fuel consumption of 6.7L/100km. The Ural M70 Anniversary comes in a brown colour, and it has a dry weight of 335kg and a maximum permissible weight of 601kg. The motorcycle has a ground clearance of 150mm and a seat height of 785mm. Both front and sidecar brakes are mechanical drums while the front brakes are Brembo with full-floating disc.

Technical specifications:

Make Model: Ural M70 Anniversary Edition

Year: 2011

Production: 50 units
Engine: Four stroke, twin flat boxer cylinders, OHV, 2 valve percylinder
Capacity: 749 cc / 45.7 cub in
Bore x Stroke: 78 x 78 mm
Compression Ratio: 8.6:1
Cooling System: Air cooled
Induction: Twin KEIHIN L 22 AA Carburettors, 32 mm
Ignition: Electronic
Starting: Electric & kick
Spark Plug: NGK BPR6HS
Max Power: 30.6 kW / 41 hp @ 5500 rpm
Max Torque: 56.9 Nm / 5.8 kgf-m / 42 ft-lbs @ 4300 rpm
Clutch: Dry, double disc
Transmission: 4 speed with reverse
Final Drive: Shaft

Sidecar drive: Engageable, shaft
Final Drive Ratio: 4.62:1
Front Suspension: Leading link w/Sachs hydraulic shock absorbers
Rear Suspension: Sachs hydraulic shock absorbers
Sidecar Suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5 x adjustable
Front Wheels: Aluminium rims with spokes, 2.5 x 19
Rear Wheels: Aluminium rims with spokes, 2.5 x 19
Front Tyres: Duro HF-308, 4.0~A19”
Rear Tyres: Duro HF-308, 4.0~A19”
Front Brakes: Brembo with full floating disc
Rear Brake: Mechanical drum
Sidecar Brake: Mechanical drum
Dimensions: Length: 2581 mm / 101.6 in Width: 1699 mm / 66.9 in Height: 1100 mm / 43.3 in
Ground Clearance: 150 mm / 5.9 in
Seat Height: 785 mm / 30.9 in
Dry Weight: 335 kg / 739 lbs
Max Permissible Weight: 601 kg / 1325 lbs
Fuel Capacity: 18.9 L / 5.0 US gal
Fuel Reserve: 3.8 L / 1.0 US gal
Consumption Average: 6.7 L/100km / 14.9 km/l / 35 US mpg

Colours: Brown
