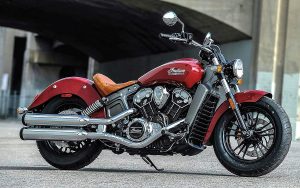

The 2015-16 Indian Scout motorcycle features a four stroke, 60-degree V-twin, DOHC engine with a capacity of 1133cc/69cu in. It has a compression ratio of 10.7:1, a semi-dry sump lubrication system, and a split dual exhaust with crossover. The electronic fuel injection system uses closed loop technology with a 60mm bore, and the bike has a 35 amp max output charging system with a 12-volt, 12 amp/hour maintenance free AGM battery. The Scout has a wet, multi-plate clutch and a six-speed sliding-mesh/foot shift transmission with a belt drive and gear drive wet clutch primary. The bike has a maximum power of 100hp/74.5kW at 8100rpm and a maximum torque of 72.2 ft-lbs/97.7Nm at 5900rpm. The suspension comprises of a 41mm telescopic fork at the front and dual shocks at the rear. The Scout comes equipped with single 298mm rotor brakes with 2 piston calipers at the front and single 298mm rotor brakes with 1 piston calipers at the rear. The front and rear wheels are cast at 16 x 3.5, with the front tire being 130/90-16 72H and the rear tire being 150/80-16 71H. The bike has a ground clearance of 135mm/5.3in and weighs 244kg/538lbs dry and 253kg/558lbs wet, with a fuel capacity of 12.5 Litres/3.3 US gal. The Indian Scout has a seat height of 673mm/26.5in Laden and is 2311mm/91in long, 880mm/34.6in wide, and 1207mm/47.5in tall. The wheelbase is 1562mm/61.5in, and the trail is 119.9mm/4.7in. The Scout has a rake of 29 degrees and can accommodate a maximum weight of 449kg/988lbs.
Technical specifications:
Make Model: Indian Scout
| Year | 2015 – 16 |
|---|---|
| Engine | Four stroke, 60 degrees V-Twin, DOHC, 4-Valves Per Cylinder, |
| Capacity | 1133 cc / 69 cu in |
| Bore x Stroke | 99 x 73.6mm / 3.898 x 2.898 |
| Cooling System | Liquid Cooled |
| Lubrication | Semi-Dry Sump |
| Compression Ratio | 10.7:1 |
| Exhaust | Split dual exhaust with crossover, Exhaust Control Two O2 sensors, one each bank, single three-way catalyst in each muffler |
| Induction | Electronic fuel injection, closed loop/60 mm bore |
| Engine Oil | SAE 15W60 |
| Oil Capacity | 4.73 Litres |
| Charging System | 35 amp max output |
| Battery | 12 volts / 12 amp/hour, 210 CCA, Maintenance Free AGM |
| Starting | Electric |
| Max Power | 100 hp / 74.5 kW @ 8100 rpm |
| Max Torque | 72.2 ft-lbs / 97.7 Nm @ 5900 rpm |
| Clutch | Wet, multi-plate |
| Transmission | 6 Speed sliding-mesh/foot shift |
| Final Drive | Belt drive, 141 tooth |
| Primary Drive | Gear drive wet clutch |
| Gear Ratio | 1st 10.782:1 2nd 7.328:1 3rd 5.841:1 4th 4.957:1 5th 4.380:1 6th 4.034:1 |
| Final Drive Ratop | 2.357:1 |
| Front Suspension | 41 mm Telescopic fork, |
| Front Wheel Travel | 120 mm / 4.7 in |
| Rear Suspension | Dual shocks |
| Rear Wheel Travel | 76 mm / 3.0 in |
| Front Brakes | Single 298 mm rotor with 2 piston caliper |
| Rear Brakes | Single 298 mm rotor with 1 piston caliper |
| Front Wheel | Cast 16 x 3.5 |
| Rear Wheel | Cast 16 x 3.5 |
| Front Tyre | 130/90-16 72H |
| Rear Tyre | 150/80-16 71H |
| Rake | 29 degrees |
| Trail | 119.9 mm / 4.7 in |
| Dimensions | Length 2311 mm / 91 in Width 880 mm / 34.6 in Height 1207 mm / 47.5 in |
| Wheelbase | 1562 mm / 61.5 in |
| Seat Height | 673 mm / 26.5 in Laden 643 mm/ 25.3 in |
| Dry Weight | 244 kg / 538 lbs |
| Wet Weight | 253 kg / 558 lbs |
| Ground Clearance | 135 mm / 5.3 in |
| GVWR | 449 kg / 988 lbs |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
