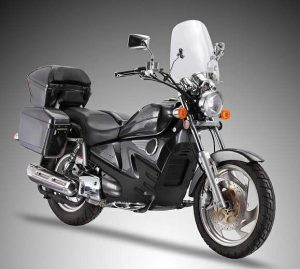

The CF Moto Cruz is a motorcycle released in 2013, featuring a four-stroke single-cylinder engine with a capacity of 244cc. The engine is liquid-cooled and has a compression ratio of 10.0:1. It produces a maximum power output of 14.3 horsepower at 7000 RPM and a maximum torque of 15 Nm at 6000 RPM. The motorcycle features an automatic transmission and a belt-based final drive system. Its frame is made of steel, and it has a front suspension system consisting of an oil damped telescopic fork and a rear suspension system consisting of a swingarm. The motorcycle has a single-disc front brake and a single-disc rear brake. Its front tire is 100/90-18, and its rear tire is 150/80-15. The motorcycle has a wheelbase of 1,490 mm and a seat height of 686 mm. Its dry weight is 166.0 kg, and it has a fuel capacity of 16.5 liters.
Technical specifications:
Make Model: CF Moto Cruz
| Year | 2013 – |
|---|---|
| Engine | Four stroke, Single cylinder, SOHC, 2 valve. |
| Capacity | 244 cc / 14.8 cu-in |
| Bore x Stroke | 72.0 x 60.0 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Liquid cooled |
| Lubrication | Automatic |
| Induction | Injection. EFI |
| Ignition | ECU |
| Starting | Electric |
| Max Power | 14.3 hp / 10.5 kW @ 7000 rpm |
| Max Torque | 15 Nm / 11.1 lb-ft @ 6000 rpm |
| Clutch | Wet multi-plate |
| Transmission | Automatic |
| Final Drive | Belt |
| Frame | Steel |
| Front Suspension | Oil damped telescopic fork |
| Rear Suspension | Swing arm |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tyre | 100/90-18 |
| Rear Tyre | 150/80-15 |
| Wheelbase | 1,490 mm / 58.7 in |
| Seat Height | 686 mm / 27.0 in |
| Dry Weight | 166.0 kg / 366 lbs |
| Fuel Capacity | 16.5 Litres / 4.3 US gal |
