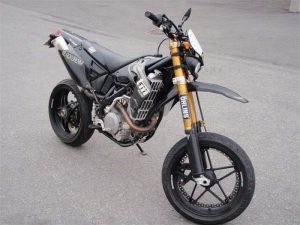

The TM Racing SMM 450 F Black Dream motorcycle was produced from 2005-07. It has a four-stroke, single-cylinder, DOHC, 4 valve engine with a capacity of 449 cc. The bore x stroke is 95 X 63.4 mm, and it is liquid-cooled with a compression ratio that is not available. The bike has a Mikuni TDMR 40mm induction system and a Kokusan CDI electronic ignition with variable advance. It can start with both electric and kick options, while the maximum power and torque are not available. The clutch is multiple-disk in oil-bath with hydraulic control, and it has a 5-speed transmission for the final drive chain. The frame is a Cr-Mo steel perimetral oval section, while the front suspension is 46/48 Kayaba/ Paioli USD, optionally ~Ahlins. The rear suspension is ~Ahlins mono shock. The front brake system has a single 320mm disc 4 piston caliper, while the rear brake system has a single 240mm disc 1 piston caliper. The front and rear tire sizes are 120/70 -17 and 150/70 -17, respectively. The dry weight of the motorcycle is not provided, while the fuel capacity is 8 liters or 2.4 US gallons.
Technical specifications:
Make Model: TM Racing SMM 450 F Black Dream
| Year | 2005 – 07 |
|---|---|
| Engine | Ffour stroke, single cylinder, DOHC, 4 valve |
| Capacity | 449 cc / 27.4 cu-in |
| Bore x Stroke | 95 X 63,4 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | NA |
| Induction | Mikuni TDMR 40mm |
| Ignition | Kokusan CDI Electronic with variable advance |
| Starting | Electric & kick |
| Max Power | NA |
| Max Torque | NA |
| Clutch | Multiple-disk in oil-bath with hydraulic control |
| Transmission | 5 Speed |
| Final Drive | Chain |
| Frame | Cr-Mo steel Perimetral oval section |
| Front Suspension | 46/48 Kayaba / Paioli USD (optional ~Ahlins) |
| Rear Suspension | ~Ahlins mono shock |
| Front Brakes | Single 320mm disc 4 piston caliper |
| Rear Brakes | Single 240mm disc 1 piston caliper |
| Front Tyre | 120/70 -17 |
| Rear Tyre | 150/70 -17 |
| Dry Weight | |
| Fuel Capacity | 8 Litres / 2.4 US gal |
