The Polaris Slingshot SLR is a 2017 motorcycle with a four-cylinder, DOHC, VVT GM Ecotech engine with a capacity of 2384 cc. It has a liquid cooling system, 91 octane or higher fuel requirement, and an electric starting system. The motorcycle features dual headlights and auxiliary lights with LED lights. It can produce a maximum power of 127.2 kW and a maximum torque of 224.8 Nm at 4700 rpm. The clutch is a dry, single plate, hydraulically operated system and the transmission is a 5-speed synchromesh with reverse system. Its steering system is rack and pinion with Polaris EPAS for assist and it has a 3.2 lock-to-lock steering turn. The Slingshot SLR has a steel space frame with a front suspension with ESP and a rear suspension with a single-sided swingarm and ESP. The motorcycle also features vented 298 mm ABS brakes, traction control, cast 10-spoke wheels, Kenda 799 tires, adjustable seat height, and a ground clearance of 127 mm. It has a dry weight of 764 kg and a fuel capacity of 37.1 L.
Technical specifications:

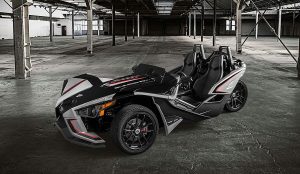

Make Model: Polaris Slingshot SLR
| Year | 2017 |
|---|---|
| Engine | GM Ecotech, four cylinder, DOHC, VVT |
| Capacity | 2384 cc / 145.5 cu-in |
| Bore x Stroke | 88 x 98 mm |
| Compression | 10.4:1 |
| Cooling System | Liquid cooled |
| Fuel | 91 octane or higher |
| Starting | Electric |
| Battery | 575 CCA |
| Headlight | 2 x Projector Hi/Lo H3, 44W (center) |
| Auxiliary Light | 2 x Projector Hi/Lo H3, 44W (outboard) |
| Other Lights | LED |
| Maximum Power | 127.2 kW / 173 hp @ 6200 rpm |
| Maximum Torque | 224.8 Nm / 22.9 kgf-m / 166 ft-lbs @4700 rpm |
| Clutch | Dry, single plate, hydraulically operated |
| Transmission | 5-Speed synchromesh with reverse |
| Final Drive | Carbon fibre reinforced belt, 36 mm x 147T |
| Gear Ratios | 1st 3.753 / 2nd 2.258 / 3rd 1.512 / 4th 1.000 / 5th 0.729:1 |
| Final Drive Ratio | 1.590:1 |
| Reverse Gear Ratio | 3.672:1 |
| Steering | Rack and pinion |
| Steering Assist | Polaris EPAS, speed sensitive |
| Steering Turns (lock-to-lock) | 3.2 |
| Frame | Steel space frame |
| Front Suspension | With ESP |
| Rear Suspension | Single sided swingarm, with ESP |
| Front Brakes | 298 mm, vented, ABS, traction control |
| Rear Brakes | 298 mm, vented, ABS, traction control |
| Wheels | Cast, 10 spokes |
| Front Rim | 7.5 x 18 J |
| Front Tyre | 2x 255/45 R18, Kenda 799 |
| Rear Rim | 9.0 x 20J |
| Rear Tyre | Single 305/45 R18, Kenda 799 |
| Dimensions | Length: 3800 mm / 149.6 in Width: 1960 mm / 77.6 in Height: 1318 mm / 51.9 in |
| Track Width | 1755 mm / 69.1 in |
| Wheelbase | 2667 mm / 105.0 in |
| Ground Clearance | 127 mm / 5.0 in |
| Seat Height | Adjustable |
| Dry Weight | 764 kg / 1864 lbs |
| Wet Weight | 791 kg / 1743 lbs |
| Fuel Capacity | 37.1 L / 9.77 US gal |
