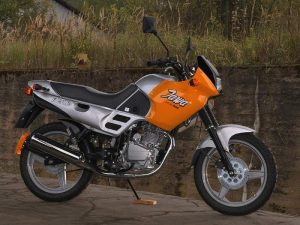

The Jawa 125 Travel motorcycle was produced in 2005 and featured a four-stroke, single-cylinder engine with a capacity of 124cc. It had a maximum power output of 9.2 kW at 8200 rpm and a maximum torque of 9.2 Nm at 7000 rpm. The motorcycle had a 5-speed transmission and a chain final drive. The front suspension included cartridge forks and the rear suspension was a mono-shock swingarm. The front and rear brakes were both single with the front being a 220mm disc and the rear, a 180mm disc. The tires were a 2.75-17 in the front and a 3.00-17 in the rear. The seat height was 830mm and the dry weight of the motorcycle was 104 kg. The fuel capacity was 6.5 L.
Technical specifications:
Make Model: Jawa 125 Dandy
| Year | 2005 |
|---|---|
| Engine | Four stroke, single cylinder, 2 valves |
| Capacity | 124 cc / 7.6 cu in |
| Bore x Stroke | 56.5 x 49.5 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Ignition | Electronic |
| Starting | Electric & kick |
| Max Power | 9.2 kW / 12 hp @ 8200 rpm |
| Max Torque | 9.2 Nm / 0.94 kgf-m / 6.8 ft. lbs @ 7000 rpm |
| Transmission | 5 Speed |
| Final Drive | Chain |
| Front Suspension | Cartridge forks |
| Rear Suspension | Mono shock, swingarm |
| Front Brakes | Single ~A220 mm disc |
| Rear Brakes | Single ~A180 mm disc |
| Front Tyre | 2.75-17 |
| Rear Tyre | 3.00-17 |
| Wheelbase | 1,330 mm / 52.4 in |
| Seat Height | 830 mm / 32.7 in |
| Dry Weight | 104 kg / 229 lbs |
| Fuel Capacity | 6.5 L / 1.7 US gal |
