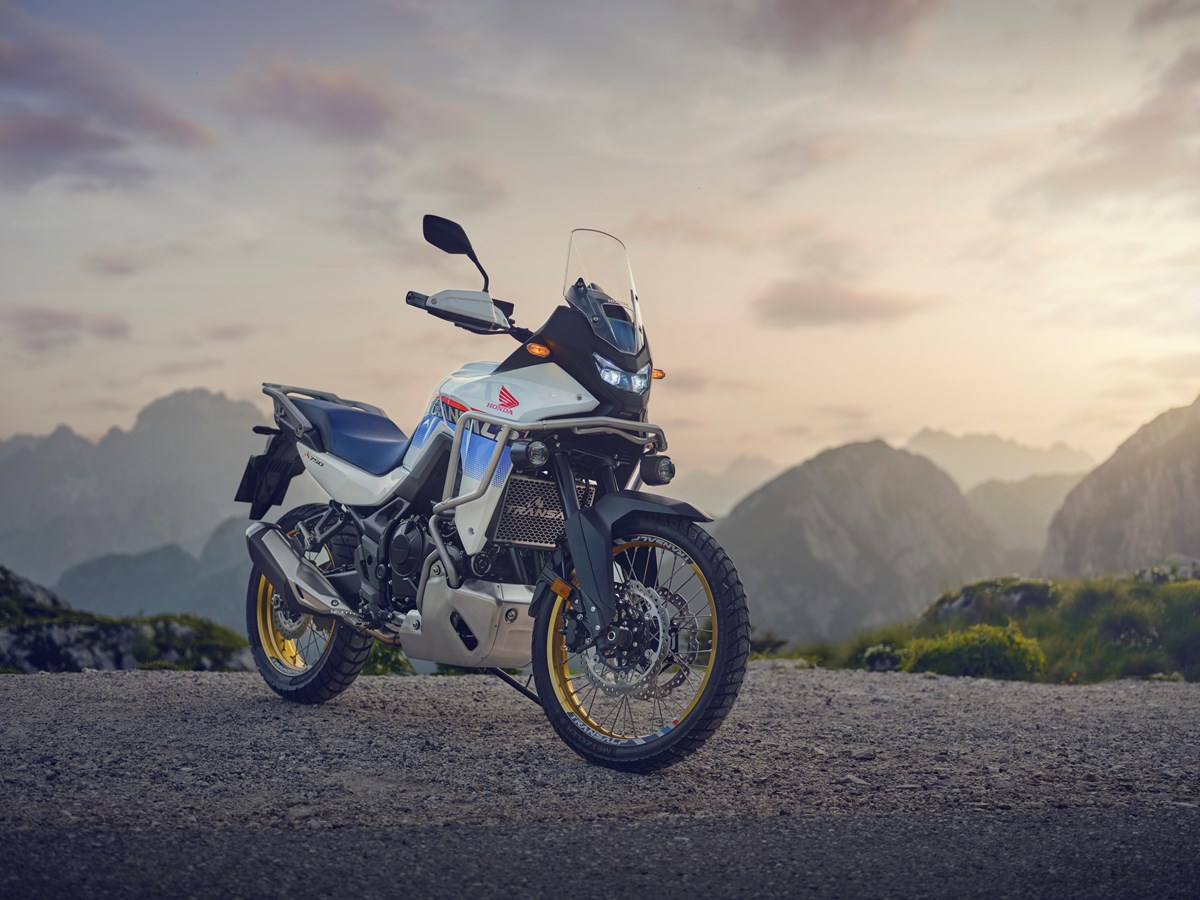

The Honda XL750 Transalp combines a 755 cc parallel-twin engine with a 21-inch front wheel and an 18-inch rear wheel. The 2025 model receives new dual LED projector headlights, a revised screen and updated suspension damping. Showa suspension provides 200 mm of front travel and 190 mm at the rear. These specifications cover the full-power European model.
Technical specifications:
Make Model: Honda XL750 Transalp
| Year | 2025 |
|---|---|
| Engine | Four-stroke parallel twin, Unicam, 8 valves, 270-degree crank |
| Capacity | 755 cc |
| Bore x Stroke | 87 x 63.5 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 11.0:1 |
| Induction | PGM-FI electronic fuel injection |
| Starting | Electric |
| Max Power | 67.5 kW @ 9500 rpm |
| Max Torque | 75 Nm @ 7250 rpm |
| Clutch | Wet multiplate, assist/slipper |
| Transmission | 6 Speed |
| Final Drive | Chain |
| Frame | Steel diamond |
| Front Suspension | 43 mm Showa SFF-CA upside-down fork |
| Front Wheel Travel | 200 mm |
| Rear Suspension | Pro-Link monoshock |
| Rear Wheel Travel | 190 mm |
| Front Brakes | Twin 310 mm discs, two-piston calipers, ABS |
| Rear Brakes | Single 256 mm disc, one-piston caliper, ABS |
| Front Tyre | 90/90-21 |
| Rear Tyre | 150/70 R18 |
| Dimensions | Length 2325 mm; width 838 mm; height 1455 mm |
| Wheelbase | 1560 mm |
| Seat Height | 850 mm |
| Ground Clearance | 210 mm |
| Wet Weight | 210 kg (kerb) |
| Fuel Capacity | 16.9 Litres |
| Consumption Average | 4.3 L/100 km (WMTC) |
| Top Speed | 195 km/h |
Market: Europe. Manufacturer specifications; equipment can vary by market.
