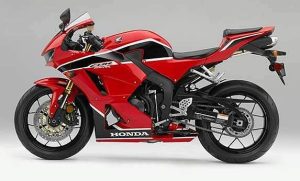

Honda CBR 600RR (2017)

The Honda CBR 600RR from 2017 has a four stroke, transverse four cylinder, DOHC engine with a capacity of 599cc. Its compression ratio is 12.2:1 and it has a liquid cooling system with wet sump lubrication. The induction is dual stage fuel injection with 40mm throttle bodies and Denso 12-hole injectors. The ignition is computer-controlled digital transistorized with electronic advance and an independent four-cylinder 3D-mapped computer control. The motorcycle has a maximum power of 118 hp / 88.1 kW at 13500 rpm and a maximum torque of 66 Nm / 48.6 lb-ft at 11250 rpm. The clutch is cable-operated multiplate wet and it has close-ratio 6 speed transmission with #525 O-ring chain final drive. Its frame is aluminum twin spar and the suspension includes a 41mm inverted Big Piston Fork and a Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability. The front brakes consist of 2x 310mm discs with 4 piston calipers while the rear brake is a single 220mm disc with a 1 piston caliper. The motorcycle has a fuel capacity of 18.2 liters / 4.8 gal, a dry weight of 156.5 kg / 345 lbs and a wet weight of 186 kg / 410 lbs. Its seat height is 820mm / 32.3 in, wheelbase is 1369 mm / 53.9 in, and ground clearance of 135 mm / 5.3 in.


Technical specifications:

Make Model: Honda CBR 600RR

Year: 2017


Engine: Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity: 599 cc / 36.5 cu-in cc / 36.5 cu-in
Bore x Stroke: 67 x 42.5 mm
Compression Ratio: 12.2:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Induction: Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition: Computer-controlled digital transistorized with electronic advance and independent four-cylinder 3D-mapped computer control.
Spark Plug: NGK, IMR9C-9H
Starting: Electric
Max Power: 118 hp / 88.1 kW @ 13500 rpm
Max Torque: 66 Nm / 48.6 lb-ft @ 11250 rpm
Clutch: Cable-operated multiplate wet clutch.
Transmission: Close-ratio 6 Speed

Final Drive: #525 O-ring chain
Frame: Aluminium, twin spar
Front Suspension: 41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability
Front Wheel Travel: 120 mm / 4.3 in
Rear Suspension: Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability
Rear Wheel Travel: 129.5 mm / 5.1 ib
Front Brakes: 2x 310mm discs 4 piston calipers
Rear Brakes: Single 220mm disc 1 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 23.5 degrees
Trail: 97.7mm / 3.9 in
Seat Height: 820 mm / 32.3 in
Wheelbase: 1369 mm / 53.9 in
Ground clearance:: 135 mm / 5.3 in
Dry Weight: 156.5 kg / 345 lbs
Wet Weight: 186 kg / 410 lbs
Fuel Capacity: 18.2 liters / 4.8 gal
