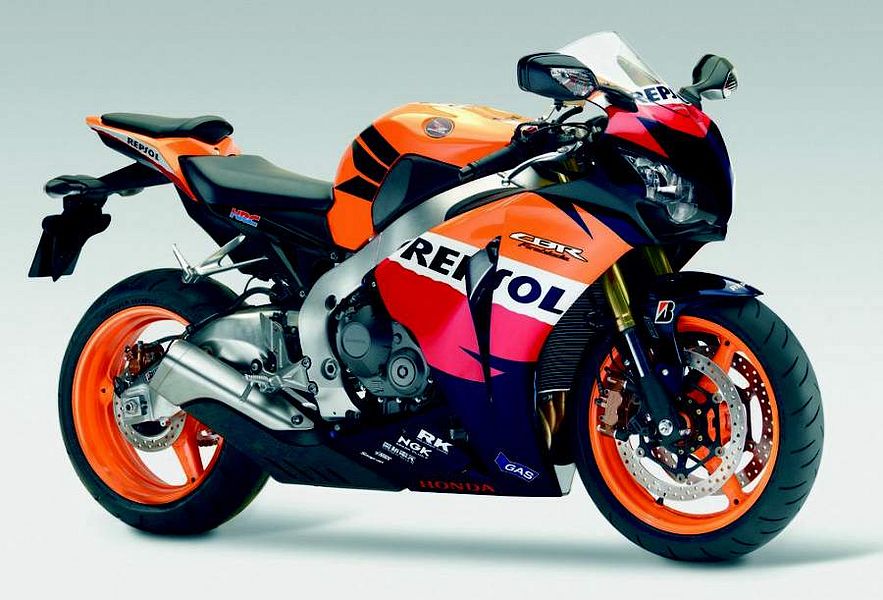

The Honda CBR 1000RR Fireblade (2011) motorcycle has a four-stroke, transverse four-cylinder, DOHC engine with 998 cc capacity and a compression ratio of 12.3:1. It has liquid cooling, wet sump lubrication, and is fueled by PGM-DSFI electronic fuel injection with a 46mm throttle bore. It has a diamond aluminum composite twin-spar frame and 43mm inverted HMAS cartridge-type telescopic fork for front suspension. The machine’s rear suspension is a unit Pro-Link with gas-charged HMAS damper. Front brakes are two 320mm discs with 4 piston calipers, combined ABS, and sintered metal pads. Rear brakes are a single 220mm disc with combined ABS and sintered metal pads. The bike’s dimensions are length 2077 mm / 81.5 in, width 685 mm / 26.9 in, and height 1135 mm / 46.5 in. It has a wheelbase of 1407 mm / 55.4 in, turning radius of 3.2 m, and seat height of 820 mm / 32.3 in. Its dry weight is 173 kg / 381.3 lbs and wet weight is 195 kg / 430 lbs (209 kg / 461.7 lbs C-ABS). The fuel capacity of the motorcycle is 17.7 liters / 4.7 gal, with a 4-liter reserve. Its standing 1/4 mile is 10.3 seconds and its top speed is 287.1 km/h / 178.3 mph.
Technical specifications:
Make Model: Honda CBR 1000RR Fireblade / C-ABS Repsol
| Year | 2011 |
|---|---|
| Engine | Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder. |
| Capacity | 998 cc / 60.9 cu-in |
| Bore x Stroke | 76 x 55.1 mm |
| Compression Ratio | 12.3:1 |
| Cooling System | Liquid cooling |
| Lubrication | Wet sump |
| Engine Oil | Synthetic, 10W/40 |
| Induction | PGM-DSFI electronic fuel injection 46mm Throttle Bore |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Spark Plug | NGK, IMR9C-9HES |
| Starting | Electric |
| Max Power | 175.6 hp / 131.0 kW @ 12000 rpm |
| Max Torque | 115 Nm / 11.73 kg-m @ 8500 rpm |
| Clutch | Wet, multiplate with diaphragm spring |
| Transmission | 6 Speed |
| Final Drive | #530 O-ring – sealed chain |
| Gear Ratio | 1st 2.286 (32/14) / 2nd 1.778 (32/18) / 3rd 1.500 (33/22) / 4th 1.333 (32/24) / 5th 1.214 (34/28) / 6th1.138 (33/29) |
| Frame | Diamond; aluminium composite twin-spar |
| Front Suspension | 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, |
| Front Wheel Travel | 120 mm / 4.3 in |
| Rear Suspension | Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, |
| Rear Wheel Travel | 135 mm / 5.4 in |
| Front Brakes | 2x 320mm discs 4 piston calipers, Combined ABS and sintered metal pads |
| Rear Brakes | Single 220mm disc, Combined ABS and sintered metal pads |
| Front Tyre | 120/70ZR-17 |
| Rear Tyre | 190/50ZR-17 |
| Rim Size Front | 17 x MT3.50 |
| Rim Size Rear | 17 x MT6.00 |
| Rake (Caster Angle) | 23.3 degrees |
| Trail | 96.2 mm / 3.8 in |
| Dimensions | Length 2077 mm / 81.5 in Width 685 mm / 26.9 in Height 1135 mm / 46.5 in |
| Wheelbase | 1407 mm / 55.4 in |
| Turning Radius | 3.2 m |
| Seat Height | 820 mm / 32.3 in |
| Dry Weight | 173 kg / 381.3 lbs |
| Wet Weight | 195 kg / 430 lbs (209 kg / 461.7 lbs C-ABS) |
| Fuel Capacity | 17.7 Liters / 4.7 gal |
| Reserve | 4 Litres |
| Standing 1/4 Mile | 10.3 sec |
| Top Speed | 287.1 km/h / 178.3 mph |
