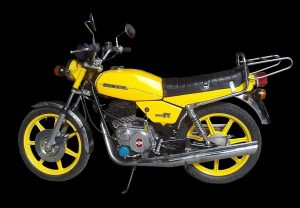

Gilera T4 200 (1979-80)

Posted on by

The Gilera T4 motorcycle was produced between 1979 and 1980. It featured a 198cc four-stroke single-cylinder engine with a compression ratio of 10.9:1, a Dellorto PHBH 28BS 28mm carb for induction, and a battery and coil for ignition. Its maximum power was 17 horsepower at 8000 rpm and had a maximum torque of 1.6 kgf-m at 6000 rpm. The motorcycle had a 5-speed transmission and chain final drive. It had a front suspension with a 30mm telescopic fork and rear suspension with dual shocks, adjustable pre-load. The front brakes were a single disc and the rear brake was a 160mm drum. The front tire size was 2.75-18 and the rear was 3.25-18. The motorcycle had a dry weight of 134 kg / 295.4 lbs and a fuel capacity of 13.4 litres / 3.5 US gal.

Technical specifications:

Make Model: Gilera T4

Year: 1979 – 80


Engine: Four stroke single cylinder
Capacity: 198 cc /
Bore x Stroke: 66 x 58 mm
Compression Ratio: 10.9:1
Induction: Dellorto PHBH 28BS 28mm carb
Ignition: Battery and coil
Starting: Kick
Max Power: 17 hp @ 8000 rpm
Max Torque: 1.6 kgf-m @ 6000 rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: 30mm Telescopic fork
Rear Suspension: Dual shocks, adjustable pre-load
Front Brakes: Single disc
Rear Brakes: 160mm drum

Front Tyre: 2.75 -18
Rear Tyre: 3.25 -18
Dry Weight: 134 kg / 295.4 lbs
Fuel Capacity: 13.4 Litres / 3.5 US gal
