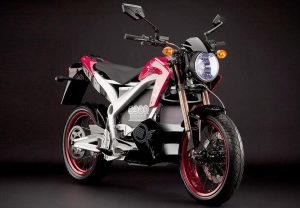

The Zero S Street (2012) motorcycle is equipped with a high-efficiency, forced-air-cooled DC motor that has a maximum capacity of 4.4 kWh and nominal capacity of 3.9 kWh. The bike can be charged using a standard 110V or 220V input and has an estimated pack life of 70,000 miles to 80% capacity. It takes 4 hours to charge using standard charging, but with quick charging, it can take 2.3 hours to charge the battery completely. The bike can travel a maximum of 58 miles (93 km) on a single charge, and an estimated 43 miles (70 km) on EPA UDDS range. The Zero S Street (2012) has a clutchless one-speed drive train with a transmission system of 98T/28T with a Poly Chain GT Carbon c belt drive system with its accessory of 51T/13T with 420 Chain. The bike has telescopic fork front suspension and mono-shock rear suspension. It has a single 310mm disc, 2 piston caliper front brake, and a single 220mm disc, 1 piston caliper rear brake system. The maximum speed that can be attained with this motorcycle is 67 mph (108 km/h), while the carrying capacity is 300 lbs (136 kg). The seat height for the bike is 32.8 in (832 mm), while the low seat height is 30.8 in (781 mm). The Zero S Street (2012) weighs 297 lbs (135 kg) and has a wheelbase of 55.5 in (1410 mm).
Technical specifications:
Make Model: Zero S
| Year | 2012 |
|---|---|
| Motor | High Efficiency, Forced Air Cooled, DC, Axial Flux, Permanent Magnet |
| Maximum capacity | 4.4 kWh |
| Nominal capacity | 3.9 kWh |
| Input Standard | 110V or 220V |
| Estimated pack life | (to 80%) 70,000 miles (112,000 km) |
| Charge time (standard) | 4 hours |
| Quick charge time (option) | 2.3 hours (100% charged) / 2 hours (90+% charged) |
| Maximum Range | 58 miles (93 km) |
| EPA UDDS Range | 43 miles (70 km) |
| Drive Train | Transmission Clutchless one speed Drive system 98T / 28T, Poly Chain (R) GT (R) Carbon c belt Drive system (accessory) 51T / 13T, 420 Chain |
| Front Suspension | Telescopic forks |
| Front Wheel Travel | 140 mm / 5.5 in |
| Rear Suspension | Mono shock |
| Rear Wheel Travel | 151 mm / 5.9 in |
| Front Brakes | Single 310mm disc, 2 piston caliper |
| Rear Brakes | Single 220mm disc, 1 piston caliper |
| Front Tyre | 110/70-17 |
| Rear Tyre | 130/70 -17 |
| Rake | 22.7 degrees |
| Trail | 71 mm / 2.8 in |
| Wheel base | 1410 mm / 55.5 in |
| Seat Height | 832 mm / 32.8 in (Low seat height 781 mm/ 30.8 in) |
| Weight | 135 kg / 297 lbs |
| Carrying capacity | 136 kg / 300 lbs |
| Top Speed | 108 km/h / 67 mph |
