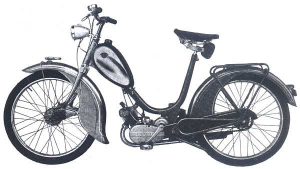

The Maico Wiesel is a 1955 motorcycle with a single cylinder, two-stroke Sachs engine. It has a compression ratio of 6:1 and uses a carburetor with a Bing setting. The motorcycle’s max power is 0.74 kW at 4000 rpm and it has a twin-disc clutch and 2-speed transmission. Its frame is an open-top tube frame and it has drum brakes with 90mm wheels. The Maico Wiesel has steel wheels with wire spokes, running on a 2.00 x 23-inch front and rear tyre. It is 1830mm long, 580mm wide, and 980mm high with a weight of 33kg. Its fuel capacity is 4.5L with an additional 0.8L reserve, and it has an average consumption of 1.8L/100km, 56 km/l, or 131 US mpg. The top speed of the Maico Wiesel is 35 km/h or 22mph.
Technical specifications:
Make Model: Maico Wiesel
| Year | 1955 |
|---|---|
| Engine | Single cylinder, two stroke, Sachs |
| Bore x Stroke | 38 x 42 mm |
| Cooling System | Air cooled |
| Compression Ratio | 6:1 |
| Fuel system | Carburetor, Bing, setting HD 56/ND 2.10 |
| Mixture | 1:25 |
| Electrical system | Bosh LM / UR 1/115/3 R1 6V 3W |
| Spark Plug | NGK BR6HIX |
| Starting | Through trappers |
| Max Power | 0.74 kW / 1.0 hp @ 4000 rpm |
| Clutch | Twin disc |
| Transmission | 2-Speed |
| Final Drive | Chain |
| Gear Ratio | 1st 2.89 / 2nd 1.77:1 |
| Frame | Open top tube frame |
| Brakes | Drums, 90 mm |
| Wheels | Steel, wire spokes |
| Front Tyre | 2.00 x 23 in. |
| Rear Tyre | 2.00 x 23 in. |
| Dimensions | Lenght: 1830 mm / 72.0 in. Width: 580 mm / 22.8 in. Height: 980 mm / 38.6 in. |
| Wheelbase | 1200 mm / 47.2 in. |
| Ground Clearance | 140 mm / 5.5 in. |
| Dry Weight | 33 kg / 73 lbs |
| Fuel Capacity | 4.5 L / 1.2 US gal |
| Reserve | 0.8 l / 0.21 US gal |
| Average Consumption | 1.8 L/100km / 56 km/l / 131 US mpg |
| Top Speed | 35 km/h / 22 mph |
