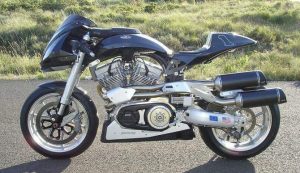

The Wakan/Avinton Track Racer Special (2008) is a motorcycle with a four-stroke, 45-degree V-twin engine and a capacity of 1640cc/100 cu-in. It has a TIG welded chrome-moly steel tubular backbone frame with an integrated oil tank and is equipped with single 42mm Keihin FCR flatside downdraft induction and CDI ignition. The motorcycle has a maximum power of 120 hp/89.5 kW @ 6250 rpm and a maximum torque of 120 ft-lb/165 Nm @ 4250 rpm. It has a 5-speed transmission with a final drive of a belt. The bike weighs 177 kg/390 lbs and has a fuel capacity of 13 litres/3.4 US Gal. The suspension features 46mm Cariani Italy inverted fully adjustable forks at the front and extruded aluminum swinging arm with Sachs shocks at the rear. The Wakan/Avinton Track Racer Special is equipped with single 340mm disc 6 piston caliper front brakes and a single 220mm disc 2 piston caliper at the rear. The front tire measures 120/70 ZR17, and the rear tire measures 180/55 ZR17. The seat height is 790mm/31.1 inches.
Technical specifications:
Make Model: Wakan / Avinton Track Racer Special
| Engine | Four stroke, 45 degreesV-twin. OHV, 4 can pushrod. |
|---|---|
| Capacity | 1640 cc / 100 cu-in |
| Bore x Stroke | 101.6 x 101.0 mm |
| Cooling System | Air cooled |
| Compression Ratio | 10.3:1 |
| Induction | Single 42mm Keihin FCR flatside downdraft |
| Ignition | CDI |
| Starting | Electric |
| Max Power | 120 hp / 89.5 kW @ 6250 rpm |
| Max Torque | 120 ft-lb / 165 Nm @ 4250 rpm |
| Transmission | 5 Speed |
| Final Drive | Belt |
| Frame | TIG welded chrome-moly steal tubular backbone frame with integrated oil tank. |
| Front Suspension | 46mm Cariani Italy inverted fully adjustable forks |
| Rear Suspension | Extruded aluminum swinging arm with Sachs shocks |
| Front Brakes | Single 340mm disc 6 piston caliper |
| Rear Brakes | Single 220mm disc 2 piston caliper |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| Seat Height | 790 mm / 31.1 in |
| Dry Weight | 177 kg / 390 lbs |
| Fuel Capacity | 13 Litres / 3.4 US gal |
