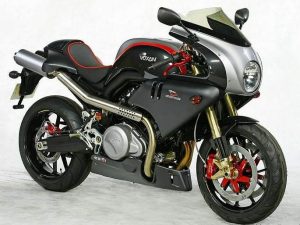

The Voxan Charade Racing motorcycle was produced in 2006 and features a four stroke, 72 degree V-Twin cylinder engine with a capacity of 996cc. The bike is liquid cooled and has a compression ratio of 10.8:1. The engine is fuel injected and produces a maximum power of 100 horsepower at 9000 rpm and a maximum torque of 103 Nm at 6500 rpm. The bike has a six-speed transmission and a chain final drive.
The chassis consists of a double aluminum tube frame, and the suspension includes WP 40mm inverted forks adjustable for compression and rebound in the front, and a WP underslung extension shock adjustable for compression, preload, and rebound in the rear. Braking is provided by 2x 320mm discs with 4 piston calipers in the front and a single 245mm disc with 2 piston caliper in the rear.
The Voxan Charade Racing has a rake of 24.7 degrees, a wheelbase of 1475mm, and a seat height of 820mm. It weighs 185.0 kg dry and has a fuel capacity of 19 litres.
Technical specifications:
Make Model: Voxan Charade Racing
| Year | 2006 |
|---|---|
| Engine | Four stoke, 72 degreesV-Twin cylinder, DOHC, 4 valves per cylinder |
| Capacity | 996 cc / 60.7 cu-in |
| Bore x Stroke | 98 x 66 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 10.8:1 |
| Induction | Magneti Marelli electronic injection |
| Ignition | Electronic |
| Starting | Electric |
| Max Power | 100 hp / 72.9 kW @ 9000 rpm |
| Max Torque | 103 Nm / 75.9 lb-ft @ 6500 rpm |
| Transmission | 6 Speed |
| Final Drive | Chain |
| Frame | Double aluminium tube |
| Front Suspension | WP 40mm inverted forks adjustable for compression and rebound. |
| Rear Suspension | WP underslung extension shock, adjustable for compression, preload and rebound. |
| Front Brakes | 2x 320mm discs 4 piston calipers |
| Rear Brakes | Single 245mm disc 2 piston caliper |
| Front Tyre | 120/70-17 |
| Rear Tyre | 180/55-17 |
| Rake | 24.7 degrees |
| Wheelbase | 1475 mm / 58.1 in |
| Seat Height | 820 mm / 32.3 in |
| Dry Weight | 185.0 kg / 407.9 lbs |
| Fuel Capacity | 19 Litres / 5.0 US gal |
