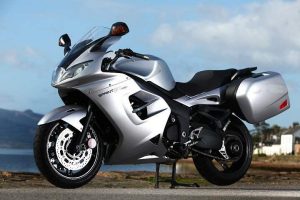

Trumph Sprint GT (2011)

The Triumph Sprint GT is a motorcycle with a four-stroke, transverse three-cylinder, DOHC engine and a capacity of 1050 cc. It has a liquid-cooled cooling system and a compression ratio of 12.0:1. The lubrication system is wet sump and the engine oil used is synthetic, 10W/40 synthetic. It has a multipoint sequential electronic fuel injection with SAI induction and digital ignition, and starts with an electric starter. The maximum power is 96 kW / 128 hp @ 9200 rpm and the maximum torque is 108 Nm / 11.0 kgf-m / 80 ft-lb @ 6300 rpm. The transmission is six-speed and the final drive is a chain. Its frame is made of aluminium beam perimeter and the swingarm is single-sided with an aluminium alloy with eccentric chain adjuster. The front suspension is Showa 43mm cartridge forks with dual rate springs and adjustable preload, while the rear suspension is Showa monoshock with adjustable preload and rebound damping. The front brakes feature 2 x 320mm floating discs, 4 piston calipers, ABS and the rear brake is a single 255mm disc, 2 piston caliper, ABS. Its front wheel is a cast aluminium alloy 5-spoke 17 x 3.50 in and the rear wheels are cast aluminium alloy 5-spoke 17 x 5.50 in. The dimensions of the motorcycle are length 2260mm / 88.9 in, width (handlebars) 760mm / 29.9 in and height without mirrors 1210mm / 47.6 in. The seat height is 815mm / 32.1 in, the rake is 23.5o and the trail is 84mm / 3.3 in. The wheelbase is 1537mm / 60.5 in and the dry weight is 239 kg / 527 lbs. The fuel capacity is 20 litres / 5.3 US gal / 4.4 Imp gal.


Technical specifications:

Make Model: Triumph Sprint GT

Year: 2011


Engine: Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder.
Capacity: 1050 cc / 64.1 cu in
Bore x Stroke: 79 x 71.4mm
Cooling System: Liquid cooled
Compression Ratio: 12.0:1
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40 Synthetic
Induction: Multipoint sequential electronic fuel injection with SAI
Ignition: Digital
Spark Plug: NGK, CR9EK
Starting: Electric
Max Power: 96 kW / 128 hp @ 9200 rpm
Max Torque: 108 Nm / 11.0 kgf-m / 80 ft-lb @ 6300 rpm
Transmission: 6 Speed
Final Drive: Chain

Frame: Aluminium beam perimeter, swingarm single-sided, aluminium alloy with eccentric chain adjuster
Front Suspension: Showa 43mm cartridge forks with dual rate springs and adjustable preload
Front Wheel Travel: 127 mm / 5.0 in
Rear Suspension: Showa monoshock with adjustable preload and rebound damping
Rear Wheel Travel: 152 mm / 6.0 in
Front Brakes: 2 x 320 mm Floating discs, 4 piston calipers, ABS
Rear Brakes: Single 255 mm disc, 2 piston caliper, ABS
Front Wheel: Cast aluminium alloy 5-spoke 17 x 3.50 in
Rear Wheels: Cast aluminium alloy 5-spoke 17 x 5.50 in
Front Tyre: 120/70-ZR17
Rear Tyre: 180/55-ZR17
Dimensions: Length 2260 mm / 88.9 in Width (handlebars) 760 mm / 29.9 in Height without mirrors 1210 mm / 47.6 in
Seat Height: 815 mm / 32.1 in
Rake: 23.5 o
Trail: 84 mm / 3.3 in
Wheelbase: 1537 mm / 60.5 in
Dry Weight: 239 kg / 527 lbs
Wet Weight: 265 kg / 584.2 lbs
Fuel Capacity: 20 Litres / 5.3 US gal / 4.4 Imp gal
