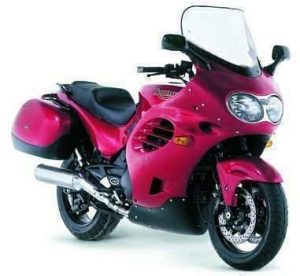

Triumph Trophy 1200 (2000-01)

The Triumph Trophy 1200 motorcycle was produced from 2000-01 and featured a four stroke, transverse four cylinder, DOHC engine with a capacity of 1180cc/72cu in. The engine used a liquid cooling system, had a compression ratio of 10.6:1, and was lubricated with wet sump engine oil. Induction was provided by 4 x 36mm flat side CV carburetors and ignition was of the digital inductive type. The bike had an electric starter and a maximum power of 78.7 kW/108 hp at 9000 rpm and maximum torque of 104 Nm/10.6 kg-m/76.7 ft-lb at 5000 rpm. The transmission had 6 speeds and final drive was via chain. The bike featured a steel trellis frame, front suspension with 43mm forks adjustable for compression, rebound damping and spring preload and rear suspension with a monoshock adjustable for preload and rebound damping. The front brakes included 2 x 310mm discs with 4 piston calipers and the rear brake had a single 255mm disc with a 2 piston caliper. The front tyre size was 120/70 ZR17 and rear tyre size was 170/60 ZR17. The bike had a rake of 27o, a trail of 105 mm/4.1 in, a length of 2152 mm/84.7 in, a width (handlebars) of 790 mm/31.1 in, and a height of 1430 mm/56.3 in. The dry weight was 235 kg/518 lbs and the fuel capacity was 25 litres/6.6 US gal/5.5 Imp gal.

Technical specifications:

Make Model: Triumph Trophy 1200

Year: 2000 – 01

Engine: Four stroke, transverse four cylinder, DOHC
Capacity: 1180 cc / 72 cu in
Bore x Stroke: 76 x 65 mm
Cooling System: Liquid cooled
Compression Ratio: 10.6:1
Lubrication: Wet sump
Engine Oil: 10W/40
Induction: 4 x 36 mm Flat side CV carburetors
Ignition: Digital Inductive type
Spark Plug: NGK, DPR8EA-9
Starting: Electric
Max Power: 78.7 kW / 108 hp @ 9000 rpm
Max Torque: 104 Nm / 10.6 kg-m / 76.7 ft-lb @ 5000 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed

Final Drive: Chain
Frame: Steel trellis frame
Front Suspension: 43mm Forks with triple rate springs adjustable for compression, rebound damping and spring preload
Rear Suspension: Monoshock with adjustable preload and rebound damping
Front Brakes: 2 x 310 mm Discs. 4 piston calipers
Rear Brakes: Single 255 mm disc, 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 170/60 ZR17
Rake: 27 o
Trail: 105 mm / 4.1 in
Dimensions: Length 2152 mm / 84.7in Width (handlebars) 790 mm / 31.1 in Height 1430 mm / 56.3 in
Seat Height: 790 mm / 31.1 in
Wheelbase: 1490 mm / 58.7 in
Dry Weight: 235 kg / 518 lbs
Fuel Capacity: 25 Litres / 6.6 US gal / 5.5 Imp gal
