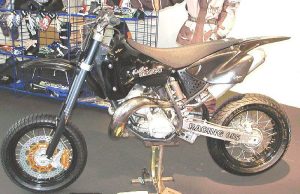

The Maico Supermoto Special Edition 685 is a motorcycle that was produced between 2003 and 2014. It features a single cylinder, two-stroke engine with a capacity of 616 cc and a bore x stroke of 95 x 87 mm. The motorcycle is liquid-cooled and runs on a Bing 55/44-205 fuel system. It has a single, upswept exhaust and PVL digital ignition with electronic starting.
With a maximum power output of 59.7 kW (80 hp), the Maico Supermoto Special Edition 685 is equipped with a wet, multidisc clutch and 5-speed transmission. The final drive is via chain. The motorcycle has a chrome molybdenum frame, White Power Extreme 50 front suspension with 305 mm (12.0 in) travel and Maico twin link WP rear suspension with 320 mm (12.6 in) travel.
Front brakes are single disc with 320 mm and 4-piston calipers, while the rear brake is a single disc with 220 mm and a 1-piston caliper. The wheels are steel with laced wire spokes and the front rim is 3.50 x17 in. while the rear rim is 5.00 x 17 in. The front tire is 120/70-17 in. and the rear tire is 160/60-17 in.
The Maico Supermoto Special Edition 685 has a wheelbase of 1480 mm (58.3 in.), ground clearance of 358 mm (14.1 in.), and a seat height of 930 mm (36.6 in.). The motorcycle has a dry weight of 101 kg (223 lbs) and a fuel capacity of 9.5 L (2.5 US gal).
Technical specifications:
Make Model: Maico Supermoto Special Edition 685
| Year | 2003 – 14 |
|---|---|
| Engine | Single cylinder, two stroke |
| Capacity | 616 cc / 37.6 in. |
| Bore x Stroke | 95 x 87 mm |
| Cooling System | Liquid cooled |
| Fuel System | Bing 55/44-205 |
| Exhaust | Single, upswept |
| Ignition | PVL digital |
| Starting | Electronic |
| Max Power | 59.7 kW / 80 hp |
| Clutch | Wet, multidisc |
| Transmission | 5-Speed |
| Final Drive | Chain |
| Frame | Chrome Molybd~An Rohr |
| Front Suspension | White Power Extreme 50 |
| Front Wheel Travel | 305 mm / 12.0 in. |
| Rear Suspension | Maico twin link WP |
| Rear Wheel Travel | 320 mm / 12.6 in |
| Front Brakes | Single disc, 320 mm, 4-piston calipers |
| Rear Brakes | Single disc, 220 mm, 1-piton calipers |
| Wheels | Steel, laced wire spokes |
| Front Rim | 3.50 x17 in. |
| Rear Rim | 5.00 x 17 in. |
| Front Tyre | 120/70-17 in |
| Rear Tyre | 160/60-17 in |
| Wheelbase | 1480 mm / 58.3 in. |
| Ground Clearance | 358 mm / 14.1 in. |
| Seat Height | 930 mm / 36.6 in |
| Dry Weight | 101 kg / 223 lbs |
| Fuel Capacity | 9.5 L / 2.5 US gal |
