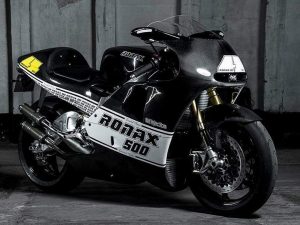

The Ronax 500 motorcycle was produced in 2014 with only 46 units made. It has a two-stroke, 80-degree V4 engine with two counter-rotating crankshafts and a capacity of 499. The fuel injection system lubricates the engine, and there are four stainless steel tuned pipes with carbon end cans. The motorcycle has an electric starter and can reach a maximum power of 160 hp at 11500rpm. The clutch is a multi-disc clutch in oil bath, and the transmission is six-speed, cassette type. The motorcycle has a chain final drive and a steering damper from Ahlins. The chassis is made from an aluminum bridge frame that is CNC processed, and the steering head is fully adjustable. The swingarm is also made from aluminum. The front suspension is an Ahlins USD fork with a diameter of 43mm, while the rear suspension is a fully adjustable Ahlins TTX monoshock. The bodywork is made of carbon fiber, and the motorcycle has two 320mm floating discs with Brembo monobloc, forged aluminum, and four pistons for the front brakes. The rear brake is a single 210mm Brembo with forged aluminum and two pistons. Finally, the motorcycle is equipped with 17-inch forged aluminum wheels.
Technical specifications:
Make Model: Ronax 500
| Year | 2014 |
|---|---|
| Production | 46 Units |
| Engine | Two stroke, 80-degree V4 with two counter-rotating crankshafts |
| Capacity | 499 |
| Lubrication | Fuel injection |
| Exhaust | Four stainless steel tuned pipes with carbon end cans |
| Starting | Electric |
| Max Power | 160 hp @ 11500rpm |
| Clutch | Multi-disc clutch in oil bath |
| Transmission | 6 Speed, cassette type |
| Final Drive | Chain |
| Steering Damper | ~Ahlins |
| Chassis | Aluminium bridge frame, CNC processed, steering head fully adjustable, aluminium swingarm |
| Front Suspension | 43mm ~Ahlins USD fork |
| Rear Suspension | ~Ahlins TTX monoshock, both ends fully adjustable |
| Bodywork | Carbonfibre |
| Front Brakes | 2x 320mm floating disc, Brembo monobloc, forged aluminium, 4 pistons, |
| Rear Brakes | Single 210mm Brembo, forged aluminium, 2 pistons, |
| Wheels | 17-inch forged aluminium |
