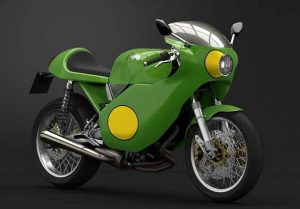

The Paton S1 is a motorcycle that was produced in 2014 in four different versions: Standard, Classic TT, PEP Memorial, and a 1 degrees Factory Signature edition. The Standard edition’s production number is unspecified, while the Classic TT had 151 units produced, PEP Memorial had 50 units produced, and the 1 degrees Factory Signature edition had 25 units produced. The motorcycle is powered by a liquid-cooled, four-stroke, parallel twin-cylinder engine with a capacity of 649cc and a compression ratio of 10.8:1. It has an electronic fuel injection system and a transistorized ignition, with a maximum power output of 53 kW/72 hp in the standard version and 73.5 kW/100 hp in the race version. The bike has a fully adjustable telescopic fork front suspension, twin ~Ahlins adjustable shocks rear suspension, and spoked rims with a chain final drive. It has a top speed of 215 km/h (133 mph) and can go from 0 to 100km/h in 3.9 seconds. The bike has a wet weight of 158 kg (348 lbs) and a fuel capacity of 16 liters (4.2 US gal). The dimensions are 1980 mm (78.0 in) in length, 680 mm (26.8 in) in width, and 1100 mm (43.3 in) in height, with a wheelbase of 1390 mm (54.7 in) and a seat height of 810 mm (31.9 in). The bike has a diamond, high tensile welded steel tube frame with a 25-degree rake and a trail of 105 mm (4.1 in).
Technical specifications:
Make Model: Paton S1 Standard, Classic TT Version, PEP Memorial Version, 1 degrees Factory Signature
| Year | 2014 – |
|---|---|
| Production | Standard: Unspecified Classic TT: 151 units PEP Memorial: 50 units 1 degrees Factory Signature: 25 units |
| Engine | Four stroke, parallel twin cylinder |
| Capacity | 649 cc / 39.6 cub in |
| Bore and Stroke | 83 mm x 60 mm |
| Compression Ratio | 10.8:1 |
| Cooling System | Liquid cooled |
| Lubrication | Semi-dry sump, firced lubrication |
| Induction | 2 x 38mm Keihin Electronic Fuel Injection |
| Ignition | Transistorised ignition |
| Starting | Electric |
| Max Power | 53 kW / 72 hp (race version: 73.5 kW / 100 hp) |
| Max Torque | 64 Nm / 47.2 lb-ft |
| Clutch | Wet, multi-disc, manual |
| Transmission | 6-Speed, return shift, casette-style |
| Final Drive | Chain |
| Frame | Diamond, high tensile welded steel tubes |
| Front Suspension | Fully adjustable 43 mm telescopic fork |
| Rear Suspension | Twin ~Ahlins adjustable shocks |
| Front Wheel Travel | 120 mm / 4.7 in. |
| Rear Wheel Travel | 130 mm / 5.1 in |
| Front Brakes | 2x 295 mm floating disc |
| Rear Brakes | Single 190 mm disc |
| Wheels | Spoked rims |
| Front Tyre | 120/70 R17 |
| Rear Tyre | 160/60 R17 |
| Rake | 25 degrees |
| Trail | 105 mm / 4.1 in |
| Dimensions | Length: 1980 mm / 78.0 in Width: 680 mm / 26.8 in Height: 1100 mm / 43.3 in |
| Wheelbase | 1390 mm / 54.7 in |
| Seat Height | 810 mm / 31.9 in |
| Wet Weight | 158 kg / 348 lbs |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Top Speed | 215 km/h / 133 mph |
| Standing 0 – 100km/h | 3.9 secs |
| Source | Bikeexif.com |
