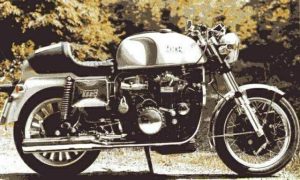

The Munch Mammoth TTS-E 1200 motorcycle was produced in 1973 with a 1176cc four-stroke traversed four-cylinder engine. It had a compression ratio of 9.8:1 and injection induction, producing a maximum power of 88hp at 6000rpm. The cooling system was air-cooled, and the transmission was a 4-speed with a final chain drive. The front and rear suspensions utilized Ko damper units with dual shocks from British Rickman or Italian Ceriani companies. The front and rear brakes were drum with front and rear tires measuring 3.25-19 and 4.00-18, respectively. The wet weight of the motorcycle was 278kg, and the fuel capacity was not specified. Overall, the Munch Mammoth TTS-E 1200 was a powerful and well-built motorcycle from the 1970s.
Technical specifications:
Make Model: M1/4 nch Mammoth TTS-E 1200
| Year | 1973 – |
|---|---|
| Engine | Four stroke, traversed four cylinder, OHC, 2 valve per cylinder |
| Capacity | 1176 cc / 71.7 cu-in |
| Bore x Stroke | 75.0 x 66.6 mm |
| Cooling System | Air cooked |
| Compression Ratio | 9.8:1 |
| Induction | Injection |
| Ignition | |
| Max power | 88 hp / 64.2 kW @ 6000 rpm |
| Transmission | 4 Speed |
| Final Drive | Chain |
| Front Suspension | Ko damper units |
| Rear Suspension | British Rickman or Italian Ceriani con panies, dual shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tyre | 3.25-19 |
| Rear Tyre | 4.00 -18 |
| Wet Weight | 278.0 kg / 612.9 lbs |
| Fuel Capacity | |
