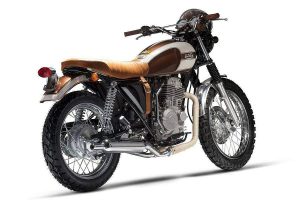

The Mash FlatTracker Von Dutch 400 Limited Edition motorcycle produced only 20 units in 2016. It has a four-stroke, single cylinder, SOHC, 4-valve engine with a capacity of 397cc. The compression ratio is 8.8:1 with a cooling system that is air-cooled and a dry sump lubrication system. It’s equipped with Siemens 2.0 EFI induction, digital electronic ignition, and electric starting. It has a maximum power of 21.6 kW (29 horsepower) at 7000 rpm and a maximum torque of 30 Nm (3.06 kgf-mm or 22.1 ft-lb) at 5500 rpm. The motorcycle has a tubular steel frame, wet multi-plate clutch, 5-speed transmission, chain final drive, and hydraulic front fork. The rear suspension has dual-shocks with adjustable preload, while the front suspension is a 41 mm hydraulic fork that is adjustable. The front brake is a single 280 mm disc with a 2-piston caliper, and the rear brake is a drum. The front and rear tires are respectively 90/90-19 and 130/70-18. It has a length of 2130 mm (83.8 in), width of 740 mm (29.1 in), height of 1130 mm (44.5 in), and a seat height of 780 mm (30.7 in). The dry weight is 151 kg (333 lbs), and it has a fuel capacity of 13L (3.4 US gal / 2.9 Imp gal).
Technical specifications:
Make Model: Mash FlatTracker – Von Dutch 400 Limited Edition
| Year | 2016 |
|---|---|
| Production | 20 Units |
| Engine | Four strike, single cylinder, SOHC, 4 valves |
| Capacity | 397 cc / 24.2 cu in |
| Bore x Stroke | 85 x 70 mm |
| Compression Ratio | 8.8:1 |
| Cooling System | Air cooled |
| Lubrication System | Dry sump |
| Induction | Siemens 2.0 EFI |
| Ignition | Digital electronic |
| Starting | Electric |
| Max Power | 21.6 kW / 29 hp @ 7000 rpm |
| Max Torque | 30 Nm / 3.06 kgf-m / 22.1 ft-lb @ 5500 rpm |
| Frame | Tubular steel frame |
| Clutch | Wet, multi-plate |
| Transmission | 5-Speed |
| Final Drive | Chain |
| Front Suspension | 41 mm Hydraulic fork, adjustable |
| Rear Suspension | Dual-shock, adjustable preload |
| Front Brakes | Single 280 mm disc, 2 piston caliper |
| Rear Brakes | Drum |
| Front Tyre | 90/90-19 |
| Rear Tyre | 130/70-18 |
| Dimensions | Length: 2130 mm / 83.8 in Width: 740 mm / 29.1 in Height: 1130 mm / 44.5 in |
| Seat Height | 780 mm / 30.7 in |
| Dry Weight | 151 kg / 333 lbs |
| Fuel Capacity | 13 L / 3.4 US gal / 2.9 Imp gal |
