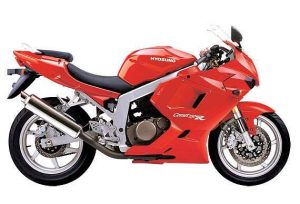

Hyosung GT 250R (2004-06)

The Hyosung GT 250R is a motorcycle that was produced from 2004-06. It has a four-stroke 248cc V-twin engine with a compression ratio of 11.0:1 and is cooled by oil and air. The bike has a 5-speed transmission and a wet multi-plate clutch. The frame is a perimeter double cradle and the front suspension features 41mm oil upside-down forks. It has a single 300mm disc brake in the front and a single 230mm disc in the rear. The GT 250R has a length of 2060mm and a height of 1135mm, with a dry weight of 168kg. The fuel capacity is 17 litres. Overall, the Hyosung GT 250R is a sporty motorcycle with decent power and a sleek design.

Technical specifications:

Make Model: Hyosung GT 250R

Year: 2004 – 06

Engine: Four stroke, 75 degrees V twin, DOHC, 4 per valve cylinder.
Capacity: 248 cc / 15.2 cu-in
Bore x Stroke: 57 x 48.8 mm
Cooling System: Oil / Air
Engine Oil: Semi-Synthetic, 10W/40
Compression Ratio: 11.0:1
Induction: 2x 26mm Mikuni carburetors
Ignition: Digital CDI
Spark Plug: NGK, CR8E
Starting: Electric
Max Power: 30 hp / 22.4 kW @ 10500 rpm
Max Torque: 20.6 Nm / 2.1 kgf-m @ 7300 rpm
Clutch: Wet Multi-Plate
Transmission: 5 Speed
Final Drive: Chain

Frame: Perimeter Double Cradle
Front Suspension: 41mm Oil upside down forks
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Swinging arm
Rear Wheel Travel: 100 mm / 3.9 in
Front Brakes: Single 300mm disc
Rear Brakes: Single 230mm disc
Front Tyre: 110/70 -17
Rear Tyre: 150/70 -17
Dimensions: Length 2060 mm / 81.1 in Width 655 mm / 25.7 in Height 1135 mm / 44.6 in
Wheelbase: 1435 mm / 56.4 in
Seat Height: 780 mm / 30.7 in
Dry Weight: 168 kb / 370.8 lbs
Fuel Capacity: 17 Litres / 4.4 US gal
