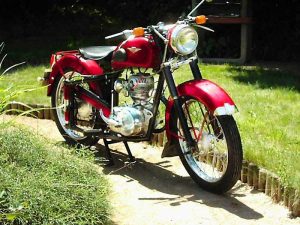

The GIMA 125-3 and 125-3SA were motorcycles produced in 1950-51. They had an AMC engine with a capacity of 125cc and a maximum power output of 4.3 kW/5.8 hp. The engine was air-cooled and had a four-stroke, single cylinder configuration. The bore and stroke were 48 x 69 mm. The motorcycle had a 3-speed transmission and a kick start. The final drive was through a chain. The front suspension consisted of telescopic forks while the rear suspension used a plunger with saddle springs. The wheels were made of steel and had laced wire spokes. The tyres were 25 x 3.0 inches in size, both front and rear. The motorcycle had drum brakes, 150 mm in diameter, both at the front and the rear. The fuel capacity was 12.5 liters/3.3 US gallons. The top speed was reported to be 75 km/h (46.6 mph).
Technical specifications:
Make Model: Gima 125-3 and 125-3SA
| Year | 1950 – 51 |
|---|---|
| Engine | AMC engine, four stroke, single cylinder |
| Capacity | 125 cc / 7.6 cu in |
| Bore x Stroke | 48 x 69 mm |
| Exhaust | Single |
| Cooling | Air cooled |
| Max Power | 4.3 kW / 5.8 hp |
| Transmission | 3 Speed |
| Starting | Kick |
| Final Drive | Chain |
| Front Suspension | Telescopic forks |
| Rear Suspension | Plunger, saddle springs |
| Wheels | Steel, laced wire spokes |
| Front Tyre | 25 x 3.0″ |
| Rear Tyre | 25 x 3.0″ |
| Front Brakes | Drum, 150 mm |
| Rear Brakes | Drum, 150 mm |
| Fuel Capacity | 12.5 L / 3.3 US gal |
| Top Speed | 75 km/h / 46.6 mph |
