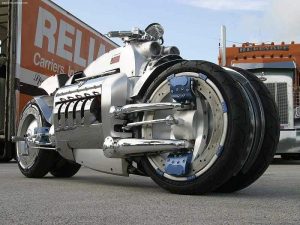

The Dodge Tomahawk is a 2002 motorcycle with a liquid-cooled, four-stroke V10 engine, capable of producing a maximum power of 500 horsepower at 5600rpm and a maximum torque of 712 Nm at 4200rpm. The engine has a capacity of 8277 cc and a compression ratio of 9.6:1. The motorcycle is equipped with a 2-speed transmission and has a seat height of 737mm.
The front suspension of the Dodge Tomahawk comprises outboard, single-sided parallel upper and lower control arms made from polished billet aluminum, while the rear suspension features hand-fabricated box-section steel inboard swing arms with a Koni coil-over damper. The front and rear brakes are 508mm discs and a single 508mm disc, respectively. The fuel capacity of this motorcycle is 12 litres, and it weighs 680.4kg when wet.
The Dodge Tomahawk is a unique motorcycle design that features a striking appearance and impressive performance capabilities. The motorcycle includes a number of high-end features, including a centrally located coil-over damper, pullrod and rocker-actuated mono linkage, and center-lock racing-style hubs. The hand-fabricated swing arms, incorporating a “hydral-link” lockable recirculating hydraulic circuit parking stand, further contribute to the unique design of this motorcycle. Overall, the Dodge Tomahawk is a highly sought-after motorcycle that attracts attention from motorcycle enthusiasts around the world.
Technical specifications:
Make Model: Dodge Tomahawk
| Year | 2002 |
|---|---|
| Engine | Liquid cooled, four stroke, V10, OHV, 2 valve per cylinder |
| Capacity | 8277 |
| Bore x Stroke | 102.4 x 100.6 mm |
| Compression Ratio | 9.6:1 |
| Induction | Injection |
| Max power | 500 hp 365 kW @ 5600 rpm |
| Max Torque | 712 Nm @ 4200 rpm |
| Transmission / Drive | 2 Speed |
| Front Suspension | Outboard, single-sided parallel upper and lower control arms made from polished billet aluminum. Mounted via ball join t to aluminum steering uprights and hubs. Five degrees caster. Single, fully adjustable centrally located coil-over damper (2.25-inch coil with adjustable spring perch); pullrod and rocker-actuated mono linkage. Center-lock racing-style hubs. |
| Rear Suspension | Hand-fabricated box-section steel inboard swing arms, incorporating “hydral-link” lockable recirculating hydraulic circuit parking stand. Single fully adjustable centrally located Koni coil-over damper (2.25-inch coil with adjustable spring perch); pushrod and rocker-actuated mono linkage. Center-lock racing-style hubs |
| Front Brakes | 2x 508mm discs |
| Rear Brakes | Single 508mm disc |
| Seat height | : 737 mm |
| Wet Weight | 680.4 kg |
| Fuel Capacity | 12 Litres |
