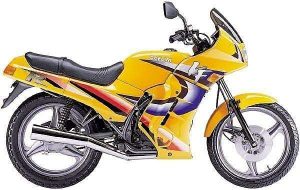

The Daelim VF 125 is a motorcycle produced in 1996 with a four-stroke, single-cylinder, 4 valve engine that has a capacity of 124cc. It features an air-cooling system, wet sump lubrication, and carburetor induction, and can be started with both electric and kick options. The motorcycle’s maximum power is 13.5 horsepower at 10000rpm and maximum torque is 10 Nm at 7500rpm. Clutch is wet and cable operated, and the transmission has five speeds. Its frame is double cradle and made with steel, while the front suspension has a cartridge and 115mm/4.5in wheel travel. The rear suspension is dual shock and swingarm with 80mm/3.1in wheel travel. For brakes, the motorcycle features a single 280mm front disc and rear drum, and the front tire size is 90/90-18 with a rear tire of 130/90-15. The wheelbase measures 1500mm/59.1in, and seat height is 715mm/28.1in. The Daelim VF 125 has a fuel capacity of 13.6 litres or 3.5 US gallons and weighs in at a dry weight.
Technical specifications:
Make Model: Daelim VF 125
| Year | 1996 |
|---|---|
| Engine | Four stroke, single cylinder, 4 valve |
| Capacity | 124 cc / 7.6 cu-in |
| Bore x Stroke | 56.5 x 5+.5 mm |
| Cooling System | Air cooled |
| Lubrication | Wet sump |
| Induction | Carburetor |
| Starting | Electric & kick |
| Max Power | 13.5 hp / 9.9 kW @ 10000 rpm |
| Max Torque | 10 Nm / 7.3 lb-ft @ 7500 rpm |
| Clutch | Wet, cable operated |
| Transmission | 5 Speed |
| Final Drive | Chain |
| Frame | steel, Double cradle frame |
| Front Suspension | Cartridge |
| Front Wheel Travel | 115 mm / 4.5 in |
| Rear Suspension | Dual shock, Swingarm |
| Rear Wheel Travel | 80 mm / 3.1 in |
| Front Brakes | Single 280mm disc |
| Rear Brakes | Drum |
| Front Tyre | 90/90-18 |
| Rear Tyre | 130/90-15 |
| Wheelbase | 1500 mm / 59.1 in |
| Seat Height | 715 mm / 28.1 in |
| Dry Weight | |
| Fuel Capacity | 13.6 Litres / 3.5 US gal |
