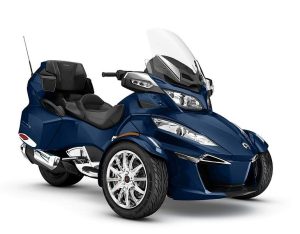

The Can-Am Spyder RT Limited motorcycle was produced between 2016 and 2017. It had a 1330cc engine with a liquid cooling system and an electronic fuel injection with electronic throttle control. Its maximum power was 115 horsepower and maximum torque was 130 Nm at 5000 rpm. The clutch was a wet, multi-plate manual or electronic operation and had a 6-speed transmission. The final drive was a belt with a front suspension of SACHS shocks and double A-arm with anti-roll bar, and a rear suspension of a swing-arm, air preload SACHS shock. Its brakes were foot-actuated and fully integrated hydraulic 3-wheel braking system with a single 270mm disc 2 piston caliper at the rear with an integrated parking brake. It weighed 450 kg with a fuel capacity of 27 litres and a storage capacity of 24.4 litres. The dimensions were 2667 mm in length, 1572 mm in width, and 1510 mm in height, with a wheelbase of 1714 mm, seat height of 772 mm, and ground clearance of 115 mm.
Technical specifications:
Make Model: Can-Am Spyder RT Limited
| Year | 2016 – 17 |
|---|---|
| Engine | Rotax 1330 ACE, four stroke, transverse three cylinder, DOHC, 4 valve per cylinder |
| Capacity | 1330cc / 81.1 cu-in |
| Bore x Stroke | 84 x 80 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 12.2:1 |
| Induction | Electronic fuel injection and electronic throttle control |
| Ignition | Electronic ignition with dual output coil |
| Starting | Electric |
| Max Power | 115 hp / 83.9 kW @ 7250 rpm |
| Max Torque | 130 Nm / 96 lb-ft. @ 5000 rpm |
| Clutch | Wet, multi-plate, manual or electronic operation through a hydraulic piston |
| Transmission | 6 Speed (semi-automatic optional) |
| Final Drive | Belt |
| Front Suspension | SACHS shocks, Double A-arm with anti-roll bar |
| Front Wheel Travel | 174 mm / 6.8 in |
| Rear Suspension | Swing-arm, Air preload SACHS shock |
| Rear Wheel Travel | 152 mm / 6.0 in |
| Brakes | Foot-actuated, fully integrated hydraulic 3-wheel braking system |
| Front Brakes | Single 270mm discs 4 piston caliper per wheel |
| Rear Brakes | Single 270mm disc 2 piston caliper, with integrated parking brake |
| Parking Brake | Electrically actuated |
| Front Rim | Aluminium 6-spoke Metallic Silver, 15 x 5 in. |
| Rear Rim | Aluminium Metallic Silver, 15 x 7 in |
| Front Tyre | 165 / 55 R15 |
| Rear Tyre | 225 / 50 R15 |
| Dimensions | Length 2667 mm / 105 in Width 1572 mm / 61.9 in Height 1510 mm / 59.4 in. |
| Wheelbase | 1714 mm / 67.5 in |
| Seat Height | 772 mm / 30.4 in |
| Ground Clearance | 115 mm / 4.6 in |
| Dry Weight | 450 kg / 1012 lb lbs |
| Fuel Capacity | 27 Litres / 7.1 US gal |
| Maximum Vehicle Load | 199 kg / 439 lbs |
| Storage Capacity | 24.4 Litres / 6.5 US gal |
