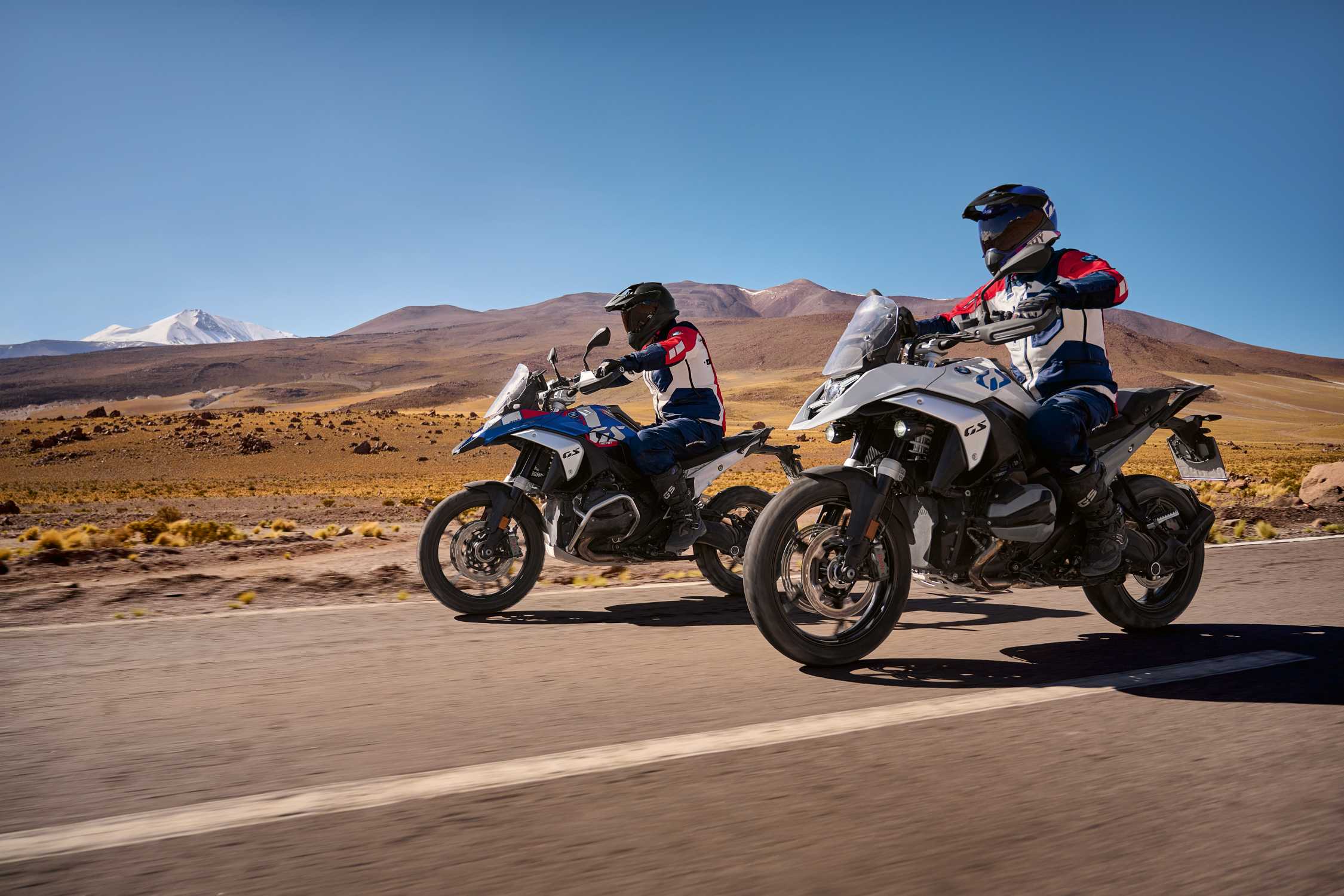

The 2024 BMW R 1300 GS introduces a redesigned 1300 cc boxer engine and a new frame for BMW's adventure range. EVO Telelever front suspension and EVO Paralever rear suspension accompany shaft final drive. The standard seat height is 850 mm, and the fuel tank holds 19 litres. This entry describes the standard motorcycle; optional equipment can alter its dimensions and weight.
Technical specifications:
Make Model: BMW R 1300 GS
| Year | 2024 |
|---|---|
| Engine | Four-stroke boxer twin, DOHC, 4 valves per cylinder, ShiftCam |
| Capacity | 1300 cc |
| Bore x Stroke | 106.5 x 73 mm |
| Cooling System | Air/liquid cooled |
| Compression Ratio | 13.3:1 |
| Induction | Electronic fuel injection |
| Max Power | 107 kW @ 7750 rpm |
| Max Torque | 149 Nm @ 6500 rpm |
| Clutch | Wet, hydraulically operated, anti-hopping |
| Transmission | 6 Speed |
| Final Drive | Shaft |
| Frame | Two-section frame with bolted rear section |
| Front Suspension | EVO Telelever |
| Front Wheel Travel | 190 mm |
| Rear Suspension | EVO Paralever single-sided swingarm |
| Rear Wheel Travel | 200 mm |
| Front Brakes | Twin 310 mm discs, four-piston radial calipers, ABS Pro |
| Rear Brakes | Single 285 mm disc, two-piston caliper, ABS Pro |
| Front Tyre | 120/70 R19 |
| Rear Tyre | 170/60 R17 |
| Dimensions | Length 2212 mm; width 1000 mm over handguards; height 1406 mm over windshield |
| Wheelbase | 1518 mm |
| Seat Height | 850 mm |
| Wet Weight | 237 kg (road ready, minimum 90% fuel) |
| Fuel Capacity | 19 Litres |
Market: Europe. Manufacturer specifications; equipment can vary by market.
