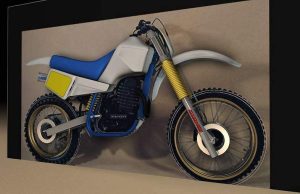

Barigo 600 Tonic (1986-87)

The Barigo 600 Tonic motorcycle was produced in limited quantities from 1986 to 1987, with only 200 units made. It had a single cylinder, four-stroke, DOHC, 4-valve engine with a capacity of 560cc and a compression ratio of 9.6:1. The motorcycle had a dry sump, double oil pump lubrication, and a 12V, 120W battery with a kick start. It had a maximum power of 35.8 kW at 7000 rpm and a torque of 50 Nm at 6000 rpm. The clutch was wet and multi-plate, with a 5-speed transmission and chain final drive. The frame was a single cradle steel 25CD 4S, with a light alloy swingarm, and Marzocchi 42 mm MIR classic front suspension. The front wheel had a travel of 300mm and the rear wheel had a mono-shock adjustable for rebound and compression. The front and rear brakes were single 230 mm floating discs with 2-opposed piston caliper. The motorcycle had a blue/white color scheme, weighed 120 kg, and had a fuel capacity of 11 L.

Technical specifications:

Make Model: Barigo 600 Tonic

Year: 1986 – 87

Production: 200 units
Engine: Single cylinder, four stroke, DOHC, 4-valve
Capacity: 560 cc / 34.2 cu in
Bore x Stroke: 94 x 81 mm
Cooling System: Air/oil cooled
Compression Ratio: 9.6:1
Lubrication: Dry sump, double oil pump
Oil capacity: 2.8 L / 3.0 US qts
Exhaust: Single, under seat
Induction: 1 x 40 mm Dell’Orto carburetor
Battery: 12V, 120W
Starting: Kick start
Max Power: 35.8 kW / 48 hp @ 7000 rpm
Max Torque: 50 Nm / 5.1 kgf-m / 36.9 lbs-ft @ 6000 rpm
Clutch: Wet, multiplate

Transmission: 5 Speed
Final Drive: Chain
Frame: Single cradle steel 25CD 4S, light alloy swingarm
Front Suspension: Marzocchi 42 mm MIR classic
Front Wheel Travel: 300 mm / 11.8 in
Rear Suspension: Mono shock adjustable for rebound and compression
Rear Wheel Travel: 300 mm / 11.8 in
Front Brakes: Single 230 mm floating disc, 2 opposed piston caliper
Rear Brakes: Single 230 mm floating disc, 2 opposed piston caliper
Front Tyre: 110/60-18
Rear Tyre: 140/70-18
Wheelbase: 1490 mm / 58.7 in
Ground Clearance: 340 mm / 13.4 in
Seat Height: 940 mm / 37.0 in
Dry Weight: 120 kg / 265 lbs
Fuel Capacity: 11 L / 2.9 US gal
Colours: Blue/white
