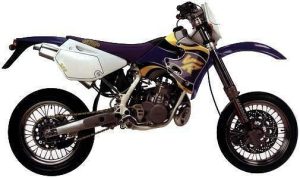

Alfer VR 2000 Supermotard (2003)

Entry updated

Alfer VR 2000 Supermotard (2003)

At a glance

Capacity
249 cc / 15.2 cu in
Seat height
905 mm / 35.6 in

The full picture.

The Alfer VR 2000 Supermotard motorcycle was manufactured in 2003 and is equipped with a two-stroke, single-cylinder engine with a capacity of 249 cc. It has a liquid-cooled cooling system, low-boy Fresco exhaust with an aluminum silencer, and Mikuni TM 38 induction. The ignition is SEM 12V, 160W AV and the electric starting system is fitted in the motorcycle. The bike has six-speed transmission with a chain final drive. The Alfer VR 2000 Supermotard has a hardened CrMo-e steel frame with a bolt-on aluminum rear section. It has Marzocchi Magnum 50 front suspension with 290 mm/11.4 in wheel travel and Ohlins linkless position-sensitive damping single shock, external compression, and rebound damping adjustment at the rear with 300 mm/11.8 mm wheel travel. The bike uses light alloy, anodized, laced spokes wheels with a wheelbase of 1480 mm/58.3 in, and 350 mm/13.8 in of ground clearance. The seat height is at 905 mm/35.6 in high, and it weighs around 103 kg/227 kg with 9.5 Litres/2.5 US gal of fuel capacity. The brakes are single 320mm discs with four-piston calipers in the front while the rear has single 220mm discs with one-piston caliper. The tire sizes are 110/70-17 in the front and 150/70-17 in the rear.


Technical specifications:

Make Model: Alfer VR 2000 Supermotard

Motorcycle technical specifications
Year2003
EngineTwo stroke, single cylinder
Capacity249 cc / 15.2 cu in
Bore x Stroke67.5 x 69.8 mm
Cooling SystemLiquid cooled
ExhaustLow-boy Fresco, aluminium silencer
InductionMikuni TM 38
IgnitionSEM 12V, 160W AV
StartingElectric
Transmission6 Speed
Final DriveChain
Gear Ratios1st 13/3/ 2nd 15/29, 3rd 17/27, 4th 19/25, 5th 21/24, 6th 22/21
FrameHardened CrMo-e steel. Bolt-on aluminium rear section.
Front SuspensionMarzocchi Magnum 50
Front Wheel Travel290 mm / 11.4 in
Rear SuspensionOhlins linkless position-sensitive damping single shock, external compression and rebound damping adjustment
Rear Wheel Travel300 mm / 11.8 mm
Front BrakesSingle 320 mm disc, 4-piston calipers
Rear BrakesSingle 220 mm disc, 1-piston caliper
WheelsLight alloy, anodized, laced spokes
Front Tyre110/70-17
Rear Tyre150/70-17
Wheelbase1480 mm / 58.3 in
Ground Clearance350 mm / 13.8 in
Seat Height905 mm / 35.6 in
Dry-Weight103 kg / 227 kg
Fuel Capacity9.5 Litres / 2.5 US gal
